NOTE:

1: Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uFceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.

2: Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.

3 :Max.Power(W)≧Vo xlo

Electrical Specification

INPUT

·Input Range: 100 to 240VAC

·Frequency: 50 to 60Hz

·Input Current: ≦2.0A

·Inrush Current: 50A/100VAC 100A/230VAC

·Hold Up Time: > 8.3ms

·Turn On Time: ≦3s

OUTPUT

·Over Voltage Protection: Latch off

·Short Circuit Protection: Auto Recovery/Latch off

·Over Current Protection: Auto Recovery/Latch off

·Over Temperature Protection: Latch off

ENVIRONMENTAL

·Operating Temperature: 0 to 40℃

·Storage Temperature:-20 to 85℃

·Operation Humidity: 10% to 90 %

·Storage Humidity: 5% to 95 %

SAFETY

·Certified for the whole series: EN 62368-1,CE,In process

Mechanical Specification

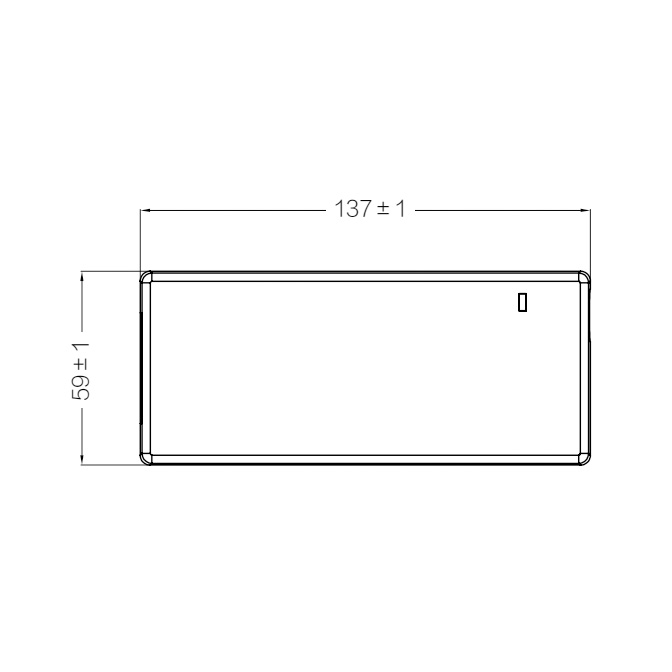

·Case Size:137Lx59Wx34H(mm) for AC Inlet C14.

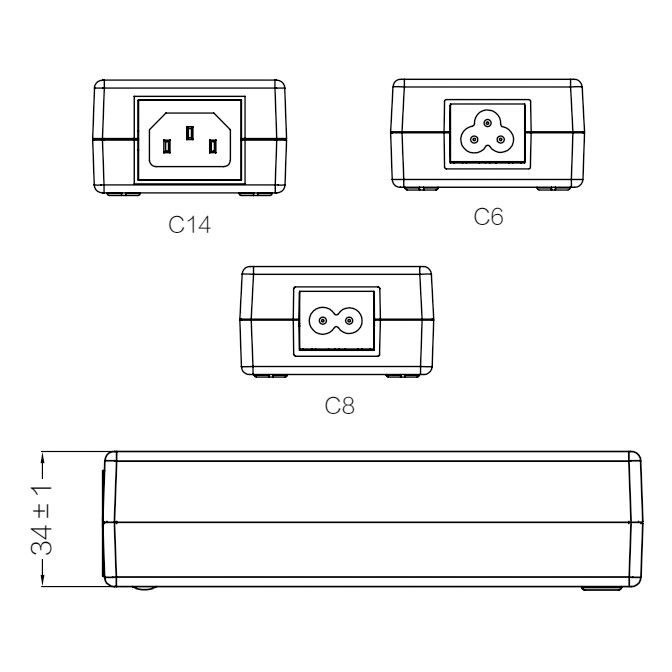

·AC Inlet: c14,C6,C8

·Weight: 460 +/-10g
